1000Mbps PCIe X4 NIC Card Server Adapter w/ SFP LX Single mode Module EXPI9402PF Free Shipping

1000Mbps PCIe X4 NIC Card Server Adapter w/ SFP LX Single mode Module EXPI9402PF Free Shipping
  • Продавец15thinfantry.us
  • Список ценUS $76.35piece
  • Продажная ценаUS $76.35piece
  • ДоставкаБесплатная доставка
  • Рейтинги3,2 (503)

Oписание продукта

1080p HDMI Extender/Transceiver/Transmitter 2km,1080p HDMI Fiber Optic Extender upto 2km HDMI Extender/Sender Receiver Over Single-Mode Fiber,SFP model-LC connector-KVT378
T1
2-4
2-5

INTRODUCTION

The HDMI Fiber optic extender provides extension of HDMI and long distances over one fiber optic cable, it supports high resolution up to 1920*[email protected], support towards independent audio transmission . The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Features:

l Transmits HDMI video signals up to 1-2km over a pair fiber optic cable;

l Support video resolution max up to [email protected]

l Compliance with HDMI 1.3 standard;

l support towards independent audio transmission

l High compatibility, can auto-match source and display device;

l Built-in automatic adjustment system, make the image smooth, clear and stable;

l Built-in ESD protection system;

l Simple to install, plug and play;


Package includes:

l  HDMI optical fiber transmitter ………. 1 pcs

l  HDMI optical fiber receiver ……………. 1 pcs

l  Fiber optic module ……………………….1 set

l  Power adapter ………………………………2 pcs

l  User manual ………………………………….1 pcs

Parameter

Description

Video

Standards

HDMI 1.3

Maximum pixel clock

225MHz

Maximum data rate

6.75Gbps

Resolution range

1920*[email protected]

Connector

HDMI-A Interface

HDMI Cable Range

<5M( Resolution: 1920*[email protected])

Impedance

100Ω

Optical fiber

Interface

SFP model – LC connector

Fiber type

Single-mode

Wavelength

Single-mode 1310nm

Interface bandwidth

1.25Gbps

Transmission distance

Single-mode fiber: maximum 2km

Other

Power supply

The power adapter: DC 12V

Power dissipation

MAX 6W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

94.5*73*26mm

The warranty

1 year free warranty

32

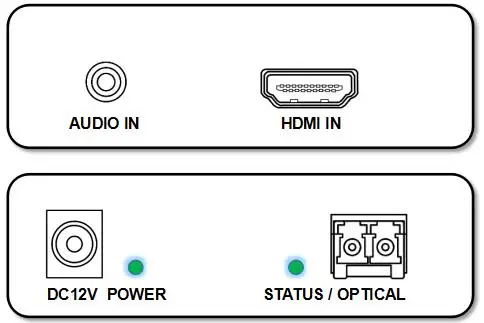

Port name

Description

HDMI IN/HDMI OUT

HDMI signal input/output

DC 12V

Power adapter socket

OPTICAL

SFP model --- LC connector

AUDIO IN/OUT

Independent audio input/output

LED indicator

Description

STATUS

Video signal connection indicator

POWER

System power indicator




  2-12-6
HDMI Extender,HDMI Transmitter,HDMI Transceiver,HDMI Sender Receiver
HDMI Optical Extender,HDMI Optical Transmitter,HDMI Optical Transceiver,HDMI Optical Sender Receiver
HDMI Extender over single-mode fiber cable,HDMI Transmitter over single-mode fiber cable,HDMI Transceiver over single-mode fiber cable
,HDMI over single-mode fiber cableSender Receiver
